Roofing Permit Application — Miami-Dade County Building Department, Process No. W2005164980 (2005)

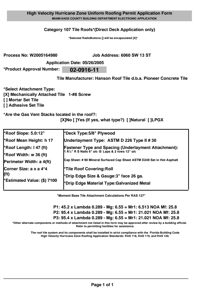

High Velocity Hurricane Zone Uniform Roofing Permit Application Form MIAMI-DADE COUNTY BUILDING DEPARTMENT ELECTRONIC APPLICATION Category 107 Tile Roofs*(Direct Deck Application only) *Selected RadioButtons [] will be encapsulated [X]* Process No: W2005164980 Job Address: 6060 SW 13 ST Application Date: 05/26/2005 *Product Approval Number: 02-0916-11 Tile Manufacturer: Hanson Roof Tile d.b.a. Pioneer Concrete Tile *Select Attachment Type: [X] Mechanically Attached Tile 1-#8 Screw [ ] Mortar Set Tile [ ] Adhesive Set Tile *Are the Gas Vent Stacks located in the roof?: [X]No [ ]Yes (If yes, what type?) [ ]Natural [ ]LPGX *Roof Slope: 5.0:12" *Roof Mean Height: h 17 *Roof Length: l 47 (ft) *Roof Width: w 36 (ft) Perimeter Width: a 4(ft) Corner Size: a x a 4*4 (ft) *Estimated Value: ($) 7100 *Deck Type:5/8" Plywood Underlayment Type: ASTM D 226 Type II # 30 Fastener Type and Spacing (Underlayment Attachment): 1 ¼" R S Nails 6" o/c @ Laps & 2 rows 12" o/c Cap Sheet: # 90 Mineral Surfaced Cap Sheet ASTM D249 Set in Hot Asphalt *Tile Roof Covering:Roll *Drip Edge Size & Gauge:3" face 26 ga. *Drip Edge Material Type:Galvanized Metal "Moment Base Tile Attachment Calculations Per RAS 127" P1: 45.2 x Lambda 0.289 - Mg: 6.55 = Mr1: 6.513 NOA Mf: 25.8 P2: 95.4 x Lambda 0.289 - Mg: 6.55 = Mr1: 21.021 NOA Mf: 25.8 P3: 95.4 x Lambda 0.289 - Mg: 6.55 = Mr1: 21.021 NOA Mf: 25.8 *Other alternate components or methods of attachment not listed in this form may be approved after review by a building official. Refer to permitting facilities for assistance. The roof tile system and its components shall be installed in strict compliance with the Florida Building Code High Velocity Hurricane Zone Roofing Application Standards: RAS 118, RAS 119, and RAS 120. Page 1 of 1
